YRTM is a two-way thrust cylindrical roller bearing with angle measurement system.

This series is based on YRT turntable bearing, installs angle measurement system on YRT turntable bearing, in order to accurately measure and adjust the angle of bearing rotation, to ensure the high precision of machine work process.

The measuring system consists of sensor components and measuring feet. Using pure inductance measurement principle, the signal is accurate and the precision is high. At the same time, due to the high protection measures, the measuring system in running is not subject to interference from outside, such as dust, smoke, light oil and scratches magnetic field, work reliably, do not need too much maintenance.

Wide application: can be used in high precision rotary table, the rotation axis, dividing head, military radar, aviation, aerospace, and in the field where high angle rotation accuracy required in measuring & test.

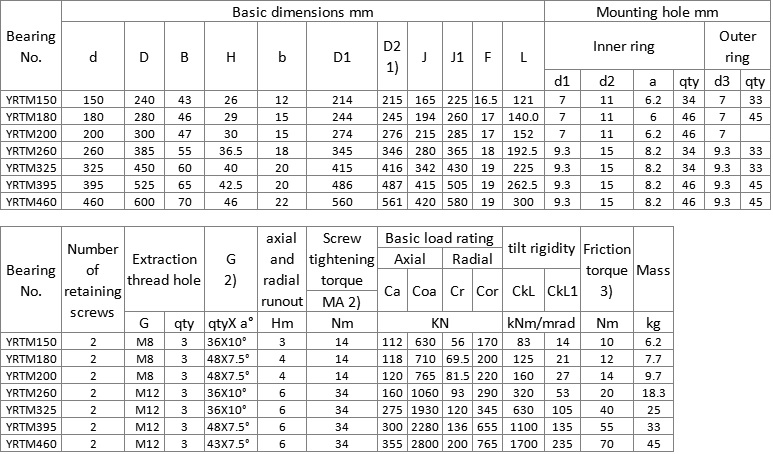

Note:
1) including fixed screw and screw tapping hole.

2) the installation of screws

3) the bearing friction torque should be measured at 5r/min speed, and the starting friction torque should be 2-2.5 times the data of the table column
