Double direction axial angular contact ball bearings are precision bearings without self-retention and with restricted tolerances to class SP. They comprise solid shaft locating washers, a spacer ring, a housing locating washer and ball and cage assemblies with solid brass cages. The bearing parts are matched to each other and can be fitted separately, but must not be interchanged with parts from bearings of the same size.

High axial load carrying capacity:
The contact angle is 60°. As a result, these highly rigid axial angular contact ball bearings can support high axial forces in both directions. The double direction precision bearings are therefore particularly suitable for precision spindle bearing arrangements in machine tools. In this case, the axial angular contact ball bearing is combined with a double row cylindrical roller bearing with a tapered bore, which supports the radial forces.

Two designs:
Axial angular contact ball bearings are available in two designs.Series 2344 can be fitted on the small diameter of the shaft taper andseries 2347 on the large diameter. These series have the same nominal outside diameter as cylindrical roller bearings NN30..-AS-K. However, the outside diameter tolerance is designed to give a loose fit when the seats of the axial angular contact ball bearing and the cylindrical roller bearing are machined together.

Sealing:
Axial angular contact ball bearings are of an open design.

Lubrication:
The bearings can be lubricated with oil or grease. Higher speeds can be achieved with oil lubrication. In order to allow oil to flow between the two rows of balls, the housing locating washer has a lubrication groove and lubrication holes. At high speeds, overlubrication of the radial bearing can be prevented if the installation space is separated between the axial angular contact ball bearing and the cylindrical roller bearing.

Operating temperature:
Axial angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C, restricted by the lubricant.

Cages:
Each row of rolling elements has a ball-guided solid brass cage. The cage is indicated by the suffix M and, together with the lubrication, has a considerable influence on the speed suitability of the bearing.

Suffixes:

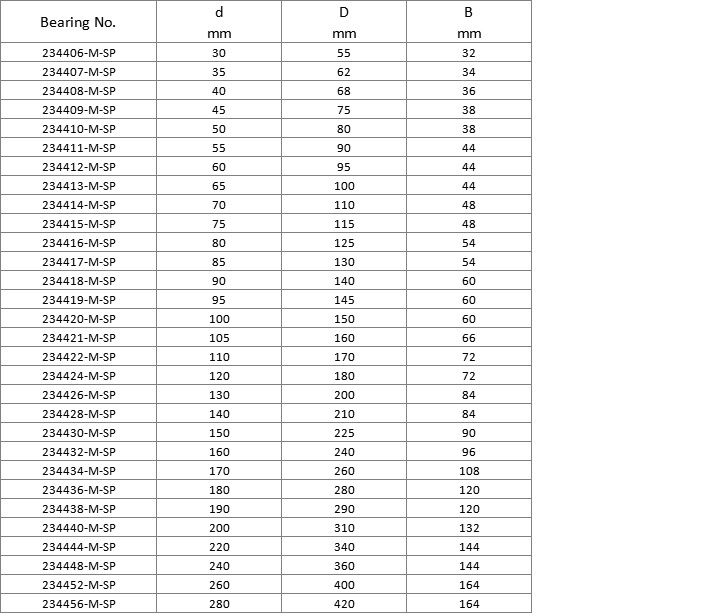

Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
