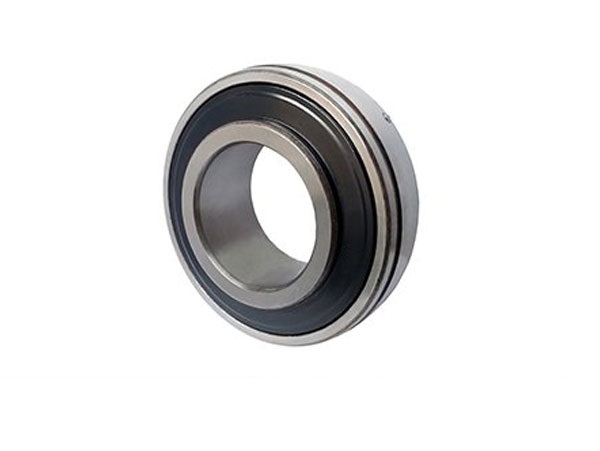

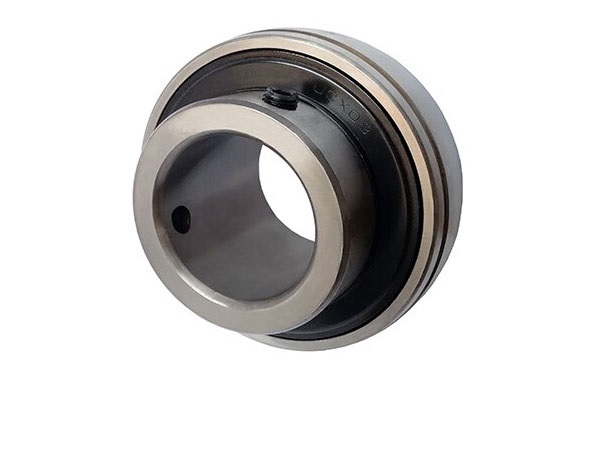

UCX UKX
[ Shanghai Oupan Bearing Co.,LTD clicks： ]

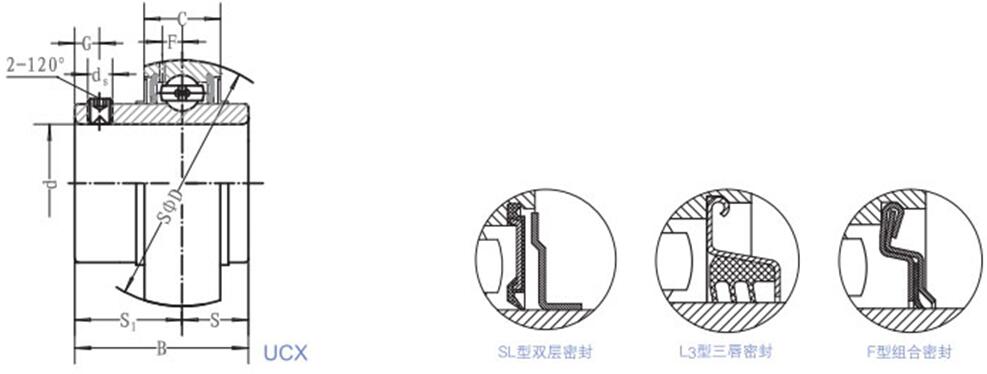

UCX series
|
Bearing No. |
Dimensions (mm/in.) |
Cr |
Cor |
wei |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
d |
D |
B |
C |
S |
S1 |
G |
ds |
F |
||||
|
UCX05 |
25 |
62 |
38.1 |
19 |
15.9 |
22.2 |
5 |
M6x1 |
5.0 |
19450 |
11250 |
0.36 |
|
UCX05-13 |
13/16 |
2.4409 |
1.5000 |
0.7480 |
0.626 |
0.874 |
0.197 |
1/4-28UNF |
0.197 |
|||
|
UCX05-14 |
7/8 |
|||||||||||
|
UCX05-15 |
15/16 |
|||||||||||
|
UCX05-16 |
1 |
|||||||||||
|
UCX06 |
30 |
72 |
42.9 |
20 |
17.5 |
25.4 |
7 |
M8x1 |
5.7 |
25700 |
15200 |
0.53 |
|
UCX06-17 |
1-1/16 |
2.8346 |
1.6890 |
0.7874 |
0.689 |
1.000 |
0.276 |
5/16-24UNF |
0.224 |
|||
|
UCX06-18 |
1-1/8 |
|||||||||||
|
UCX06-19 |
1-3/16 |
|||||||||||
|
UCX07 |
35 |
80 |
49.2 |
21 |
19 |
30.2 |
8 |
M8x1 |
6.2 |
29600 |
18100 |
0.7 |
|
UCX07-21 |
1-5/16 |
3.1496 |
1.9370 |
0.8268 |
0.748 |
1.189 |
0.315 |
5/16-24UNF |
0.244 |
|||
|
UCX07-22 |
1-3/8 |
|||||||||||
|
UCX07-23 |
1-7/16 |
|||||||||||
|
UCX08 |
40 |
85 |
49.2 |
22 |
19 |
30.2 |
8 |
M8x1 |
6.4 |
32700 |
20900 |
0.77 |
|
UCX08-24 |
1-1/2 |
3.3465 |
1.9370 |
0.8661 |
0.748 |
1.189 |
0.315 |
5/16-24UNF |
0.252 |
|||
|
UCX08-25 |
1-9/16 |
|||||||||||
|
UCX09 |
45 |
90 |
51.6 |
24 |
19 |
32.6 |
10 |
M10x1 |
6.5 |
35000 |
23300 |
0.88 |
|
UCX09-26 |
1-5/8 |
3.5433 |
2.0315 |
0.9449 |
0.748 |
1.283 |
0.394 |
3/8-24UNF |
0.256 |
|||
|
UCX09-27 |
1-11/16 |
|||||||||||
|
UCX09-28 |
1-3/4 |
|||||||||||
|
UCX10 |
50 |
100 |
55.6 |
25 |
22.2 |
33.4 |
10 |
M10x1 |
7.0 |
43300 |
29200 |
1.15 |
|
UCX10-30 |
1-7/8 |
3.9370 |
2.1890 |
0.9843 |
0.874 |
1.315 |
0.394 |
3/8-24UNF |
0.276 |
|||
|
UCX10-31 |
1-15/16 |
|||||||||||
|
UCX11 |
55 |
110 |
65.1 |
27 |
25.4 |
39.7 |
10 |
M10x1 |
7.6 |
47700 |
32800 |
1.56 |
|
UCX11-33 |
2-1/16 |
4.3307 |
2.5630 |
1.0630 |
1.000 |
1.663 |
0.394 |
3/8-24UNF |
0.599 |
|||
|
UCX11-34 |
2-1/8 |
|||||||||||
|
UCX11-35 |
2-3/16 |
|||||||||||
|
UCX12 |
60 |
120 |
65.1 |
28 |
25.4 |
39.7 |
10 |
M10x1 |
8.5 |
67200 |
40000 |
1.93 |
|
UCX12-38 |
2-3/8 |
4.3307 |
2.5630 |
1.1024 |
1.000 |
1.563 |
0.394 |
3/8-24UNF |
0.335 |
|||
|
UCX12-39 |
2-7/16 |
|||||||||||
|
UCX13 |
65 |
125 |
74.6 |
29 |
30.2 |
44.4 |
12 |
M12X1.5 |
8.9 |
62100 |
44800 |
2.06 |
|
UCX13-40 |
2-1/2 |
4.9213 |
2.9370 |
1.1417 |
1.189 |
1.748 |
0.472 |
1/2-20UNF |
0.350 |
|||
|
UCX13-41 |
2-9/16 |
|||||||||||
|
UCX14 |
70 |
130 |
77.8 |
30 |
33.3 |
44.5 |
12 |
M12X1.5 |
9.2 |
66200 |
49300 |
2.44 |
|
UCX14-42 |
2-3/8 |
5.1181 |
3.0630 |
1.1811 |
1.311 |
1.752 |
0.472 |
1/2-20UNF |
0.362 |
|||
|
UCX14-43 |
2-11/16 |
|||||||||||
|
UCX14-44 |
2-3/4 |
|||||||||||
|
UCX15 |
75 |
140 |
82.6 |
32 |
33.3 |
49.3 |
12 |
M12x1.5 |
9.5 |
72600 |
53300 |
2.9 |
|
UCX15-45 |
2-13/16 |
5.5118 |
3.2520 |
1.2598 |
1.311 |
1.9409 |
0.472 |
1/2-20UNF |
0.374 |
|||
|
UCX15-46 |
2-7/8 |
|||||||||||
|
UCX15-47 |
2-15/16 |
|||||||||||
|
UCX15-48 |
3 |
|||||||||||
|
UCX16 |
80 |
150 |
85.7 |
34 |
34.1 |
51.6 |
12 |
M12x1.5 |
10.2 |
63300 |
63700 |
3.9 |
|
UCX16-49 |
3-1/16 |
5.9055 |
3.3740 |
1.3386 |
1.343 |
2.031 |
0.472 |
1/2-20UNF |
0.402 |
|||
|
UCX16-50 |
3-1/8 |
|||||||||||
|
UCX16-51 |
3-3/16 |
|||||||||||
|
UCX17 |
85 |
160 |
96 |
36 |
39.7 |
56.3 |
12 |
M12x1.5 |
11.2 |
96000 |
71100 |
4.7 |
|
UCX17-53 |
3-5/16 |
6.2992 |
3.7795 |
1.4173 |
1.563 |
2.217 |
0.472 |
1/2-30UNF |
0.441 |
|||
|
UCX17-55 |
3-7/16 |
|||||||||||
|
UCX18 |
90 |
170 |
104.0 |
39 |
42.9 |
61.1 |
16 |
M14x1.5 |
12.5 |
109000 |
82000 |
5.66 |
|
UCX18-56 |
3-1/2 |
6.6929 |
4.0945 |
1.5354 |
1.689 |
2.406 |
0.630 |
9/16-18UNF |
0.492 |
|||
|
UCX20 |
100 |
190 |
117.5 |
43 |
49.2 |
68.3 |
18 |
M16X1.5 |
13.7 |
133000 |
105000 |
8.56 |
|
UCX20-64 |
3-1/2 |
6.6929 |
4.0945 |
1.5354 |
1.689 |
2.689 |
0.630 |
5/8-18UNF |
0.539 |
|||
UKX series
|
Bearing No. |
Dimensions ( mm / in.) |
Cr |
Cor |
wei |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
d1 |
d |
D |
B |
C |
B1 |
B2 |
d2 |
F |
||||
|
UKX05;H2305 |
20 |
25 |
62 |
26 |
19 |
35 |
8 |
38 |
5 |
19500 |
11300 |
0.37 |
|
X05;HE2305 |
3/4 |
0.9845 |
2.4409 |
1.0236 |
0.7480 |
1.378 |
0.315 |
1.496 |
0.197 |
|||
|
UKX06;H2306 |
25 |
30 |
72 |
29 |
20 |
38 |
8 |
45 |
5.7 |
25700 |
15300 |
0.59 |
|
X06;HS2306 |
7/8 |
1.1811 |
2.8346 |
1.1417 |
0.7874 |
1.496 |
0.315 |
1.771 |
0.224 |
|||
|
X06;HE2306 |
1 |
|||||||||||
|
UKX07;H2307 |
30 |
35 |
80 |
31 |
21 |
43 |
9 |
52 |
6 |
29500 |
18100 |
0.75 |
|
X07;HS2307 |
1-1/8 |
1.378 |
3.1496 |
1.2205 |
0.8268 |
1.693 |
0.354 |
2.047 |
0.244 |
|||
|
UKX08;H2308 |
35 |
40 |
85 |
31 |
22 |
46 |
10 |
58 |
6.4 |
31600 |
20600 |
0.86 |
|
X08;HE2308 |
1-1/4 |
1.5748 |
3.3465 |
1.2205 |
8.661 |
1.811 |
0.394 |
2.284 |
0.252 |
|||
|
X08;HS2308 |
1-3/8 |
|||||||||||
|
UKX09;H2309 |
40 |
45 |
90 |
32 |
24 |
50 |
11 |
65 |
6.5 |
35000 |
23200 |
0.96 |
|
X09;HA2309 |
1-7/16 |
1.7717 |
3.5433 |
1.2598 |
0.9449 |
1.969 |
0.433 |
2.559 |
0.256 |
|||
|
X09;HE2309 |
1/12 |
|||||||||||
|
X09;HS2309 |
1-5/8 |
|||||||||||
|
UKX10;H2310 |
45 |
50 |
100 |
35 |
25 |
55 |
12 |
70 |
7.0 |
43500 |
29200 |
1.34 |
|
X10;HS2310 |
1-5/8 |
1.9685 |
3.9370 |
1.3780 |
0.6843 |
2.165 |
0.472 |
2.756 |
0.726 |
|||
|
X10;HA2310 |
1-11/16 |
|||||||||||
|
X10;HE2310 |
1-3/4 |
|||||||||||
|
UKX11;H2311 |
50 |
55 |
110 |
38 |
27 |
59 |
12 |
75 |
7.6 |
47700 |
32900 |
1.67 |
|
X11;HS2311 |
1-7/8 |
2.1654 |
4.3307 |
1.496 |
1.0630 |
2.323 |
0.472 |
2.953 |
0.299 |
|||
|
X11;HA2311 |
1-15/16 |
|||||||||||
|
X11;HE2311 |
2 |
|||||||||||
|
UKX12;H2312 |
55 |
60 |
120 |
40 |
28 |
62 |
13 |
80 |
8.5 |
57500 |
40000 |
1.84 |
|
X12;HS2312 |
2-1/8 |
2.3622 |
4.7244 |
1.5748 |
1.1024 |
2.441 |
0.512 |
3.15 |
0.335 |
|||
|
UKX13;H2313 |
60 |
65 |
125 |
40 |
29 |
65 |
14 |
85 |
8.9 |
60800 |
45000 |
2.15 |
|
X13;HA2313 |
2-3/16 |
2.5591 |
4.9213 |
1.5748 |
1.1417 |
2.559 |
0.551 |
3.346 |
0.350 |
|||
|
X13;HE2313 |
2-1/4 |
|||||||||||
|
X13;HS2313 |
2-3/8 |
|||||||||||
|
UKX15;H2315 |
65 |
75 |
140 |
45 |
32 |
73 |
15 |
98 |
9.5 |
71500 |
54200 |
3.05 |
|
X15;HA2315 |
2-7/16 |
2.9528 |
5.5118 |
1.7717 |
1.2598 |
2.874 |
0.591 |
3.858 |
0.374 |
|||
|
X15;HS2315 |
2-1/2 |
|||||||||||
|
UKX16;H2316 |
70 |
80 |
150 |
46 |
34 |
78 |
17 |
105 |
10.2 |
83500 |
64000 |
3.95 |
|
X16;HA2316 |
2-11/16 |
3.1496 |
5.9055 |
1.811 |
1.3386 |
3.071 |
0.669 |
4.134 |
0.402 |
|||
|
X16;HS2316 |
2-3/4 |
|||||||||||
|
UKX17;H2317 |
75 |
85 |
160 |
47 |
36 |
82 |
18 |
110 |
11.2 |
96000 |
71500 |
4.83 |
|
X17;HA2317 |
2-15/16 |
3.3465 |
6.2992 |
1.8504 |
1.4173 |
3.228 |
0.709 |
4.331 |
0.441 |
|||
|
X17;HE2317 |
3 |
|||||||||||
|
UKX18;H2318 |
80 |
90 |
170 |
50 |
39 |
86 |
18 |
120 |
12.5 |
109000 |
82000 |
5.45 |
|
X18;HA2318 |
3-3/16 |
3.5433 |
6.6929 |
1.9685 |
1.5354 |
3.386 |
0.709 |
4.724 |
0.492 |
|||
|
UKX20;H2320 |
90 |
100 |
190 |
54 |
43 |
97 |
20 |
130 |
13.7 |
133000 |
105000 |
7.51 |
|
X20;HA2320 |
3-17/32 |
3.937 |
7.4803 |
2.126 |
1.6929 |
3.8189 |
0.7874 |
5.1181 |
0.539 |
|||
