NK, NKS, RNA49, RNA69

[ Shanghai Oupan Bearing Co.,LTD clicks： ]

Shaft diameter (mm)	Bearing No.	Mass ref. (g)	Boundary Dimensions (mm)			Basic Load Rating (N) Dynamic/Static		Limit Speed (rpm) Oil

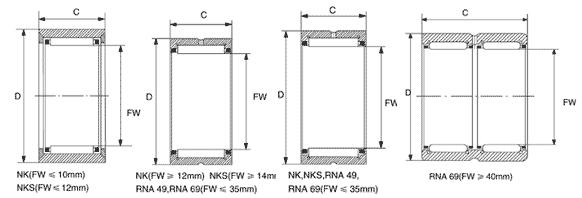

Shaft diameter (mm)	Bearing No.	Mass ref. (g)	Fw	D	C	Basic Load Rating (N) Dynamic/Static		Limit Speed (rpm) Oil
5	NK5/10TN	2.9	5	10	10	2100	1400	36780
	NK05/08		5	10	8
	NK05/10TN-OH		5	10	12	2350	1920	39000
	NK05/12TN	3.7	5	10	12	3000	2650	39000
6	NK06/10		6	12	10	2600	2200	37000
	NK06/10TN		6	12	10	2600	2200	37000
	NK06/12TN	5.7	6	12	12	3350	3150	37000
	RNA6X13X8TN		6	13	8
7	NK07/10	6.9	7	14	10	2850	2650	34000
7	NK07/12	8.2	7	14	12	3650	3600	34000
7.8	RNA7.8169		7.8	16	9
8	NK8/12TN	8.3	8	15	12	3950	4100	32000
	NK08/12	8.7	8	15	12	3950	4100	32000
	NK08/16	12	8	15	16	5100	5800	32000
	NK08/16TN		8	15	16	5100	5800	32000
	RNA8X19X9		8	19	9
	RNA8X14X8		8	14	8
	RNA496		8	15	10
	RNA8X15X10TN		8	15	10
9	NK09/12	10.3	9	16	12
10	NK10/12TN	10	10	17	12	4750	5300	29000
		16.6	10	17	15	4860	7100	29000
	NK10/10		10	17	10
	NK10/12		10	17	12
	NK10/16		10	17	16	6200	7800	29000
	NK10/16TN		10	17	16	6200	7800	29000
	NKS10		10	19	13	5800	6000	29000
12	NK12/12TN	11.8	12	19	12	6000	6400	27000
		15.4	12	19	15	6400	7100	27000
	NK12/16	16.8	12	19	16	8200	9800	27000
14	NK14/16	20.8	14	22	16	10100	11500	25000
	NKS14	27	14	25	16	1400	13800	24000
	RNA4900	24.4	14	22	13	8500	9000	25000
	RNA6900	29.1	14	22	22	12800	15600	25000
	NK14/12		14	22	12
	NK14/20		14	22	20	12800	15600	25000
15	NK15/12	18.5	15	23	12	8600	11000	21000
	RNA152815	31.7	15	28	15	13600	17200	24000
		16.1	15	22	12	8200	9800	8500
		18.2	15	25	12	10600	13500	17000
	NK15/16	21.8	15	23	16	10700	12700	24000
	NK15/20	26.7	15	23	20	13600	17200	24000
	NK152312		15	23	12
	NK152512		15	25	12
16	NK16/16	20.8	16	24	16	11300	13900	23000
	NK16/20	23.9	16	24	20	10400	16800	23000
	RNA4901	16.6	16	24	13	6400	8900	15500
	RNA6901	28.7	16	24	22	14000	18600	15500
	NKS16	30	16	28	16	14900	15000	20000
	NK162516		16	25	16
	NK162616		16	26	16
17	NK17/16	21.5	17	25	16	9000	13500	14000
17	NK17/20	30	17	25	20	15000	20000	23000
18	NK18/20	30.5	18	26	20	15500	19800	22000
18	NK18/16		18	26	16	12500	16200	22000
19	NK19/16		19	27	16	13000	17000	22000
20	NK20/16	25.7	20	28	16	10500	13800	21000
	NK20/20	29.3	20	28	20	11500	21800	21000
	NK202616	20.8	20	26	16	9600	10800	21000
	NK202620		20	26	20	9600	10800	21000
	NKS20	46.8	20	32	20	20000	23000	20000
	NK203312SX	29.1	20	33	12	13000	18000	11000
		24.3	20	28	25	13000	17500	11000
	RNA4902	20.5	20	28	13	11000	12900	12000
	RNA6902	35.4	20	28	23	10800	12800	12000
	NK20/16		20	32	16	13000	25000	12000
	RNA5902		20	28	18
21	NK21/12		21	29	12
	NK21/16		21	29	16	13500	18700	21000
	NK21/20		21	29	20
22	NK22/16	29.2	22	30	16	13500	18000	11500
		34.6	22	35	16	18600	20800	11500
	NKS22	60.2	22	35	20	21500	25000	17000
	RNA4903	20.7	22	30	13	12000	16800	16300
	RNA5903		22	30	18
	RNA6903	39.8	22	30	23	14000	19900	16300
		53	22	35	25	24500	28000	14100
		42.5	22	30	30	17700	27000	16500
		27.4	22	28	16	10500	15000	16500
		49.4	22	35	16	18600	20800	16500
	NK22/20		22	30	20
23		37.5	23	30	30	18600	29000	15000
24	NK24/16		24	32	16
24	NK24X33.5X7.5		24	33.5	7.5
25	NK25/16	30	25	33	16	12900	20400	15000
	NK25/20	38.4	25	33	20	16800	28500	15000
	RNA4904	50.8	25	37	17	11900	16500	15000
	RNA6904	97.7	25	37	30	26000	43000	15000
	NKS25	65	25	38	20	25800	31000	16300
		100.1	25	35	25	14900	22400	16500
	NK25/30	63	25	33	30	18800	30500	16500
	NK253326		25	33	26
	NK253422		25	34	22
	NK253425		25	34	25
	NK253820		25	38	20
	NK253825		25	38	25
	NK254517.5		25	45	17.5
26	NK26/16	30	26	34	16	15000	23000	16300
26	NK26/20	40	26	34	20	17000	30000	16300
27	NK27X40X25		27	40	25
28	RNA283833	99.8	28	38	33	33000	57000	12000
		99.8	28	38	33	33000	57000	12000
	NKS28	80	28	42	20	25900	33500	15000
	NK28/20	53	28	37	20	22000	34000	16500
	NK28/30		28	37	30	33000	57000	12000
	RNA69/22		28	39	30
29	NK29/20		29	38	20	21900	34000	15000
29	NK29/30		29	38	30	32500	57000	15000
30	NK30/20	57.9	30	40	20	20600	32000	15000
	NK30/30	95	30	40	30	31500	50000	15000
	RNA4905	57	30	42	17	23600	31500	14000
	RNA6905	106.5	30	42	30	39000	59000	14000
		68	30	42	20	20000	32000	15000
	NK304013		30	40	13
	NK304430		30	44	30
	NK304630		30	46	30
	NK305017		30	50	17
	NKS30		30	45	17	32000	40000	14000
	RNA305225		30	52	25
30.5	NK30.5X50X16		30.5	50	16
30.5	NK30.5X50X17		30.5	50	17
31.75	NK31.75X44.45X31.75		31.75	44.45	22
32	NK32/20	75.4	32	42	20	22600	33500	15000
	RNA49/28	80	32	45	17	17400	30000	13000
	NAS32	100	32	47	22	31000	40000	13000
	RNA69/28	125	32	45	30	39500	61300	13000
		42	32	38	11	10750	30500	12000
		193	32	50	35	40500	63000	12000
	NKS32	100	32	47	22	31000	40000	12000
	NK32/30		32	42	30	33500	60000	12000
	RNA324527		32	45	27
34	NK345034		34	50	34
34	NK345035		34	50	35
35	NK35/20	70	35	45	20	13800	26900	12000
	RNA4906	62.8	35	47	17	17000	30500	12000
	RNA6906	116	35	47	30	35000	67000	12000
		161	35	51	51	43500	71000	12000
	NK354512		35	45	12
	NK354830		35	48	30
	NK355034		35	50	34
	NK355236		35	52	36
	RNA354527		35	45	27
	RNA5906	108	35	47	23
	RNA355730		35	57	30
	RNA355734		35	57	34
36	NK365225		36	52	25
37		154	37	52	22	28500	45500	9000
	NK37/20		37	47	20	24900	43500	12000
	NK37/30		37	47	30	37000	73000	12000
38	NK38/20		38	48	20	25500	45000	12000
38	NK38/30		38	48	30	38000	76000	12000
40	NK40/20	78.9	40	50	20	26500	43000	11000
	NK40/30	120	40	50	30	37500	79000	11000
	NK404815		40	48	15
	NK405530		40	55	30
	NKS40		40	55	22	38000	54000	11000
	RNA49/32		40	52	20
	RNA69/32		40	52	36	25500	68500	8500
	RNA405422		40	54	22
	RNA40X55X20		40	55	20
42	NK42/20	83	42	52	20	23900	45000	10000
	NK42/30	125	42	52	30	27000	49000	10000
	RNA4907	99.3	42	55	20	19800	41500	8700
	RNA5907		42	55	27
	RNA6907	160	42	55	36	26000	60500	8700
		148	42	65	22	31500	51000	8700
	RNA425622		42	56	22
43	NK43/20	84	43	53	20	25700	75000	10000
43	NK43/30	126	43	53	30	39000	75000	10000
45	NK45/20	81.5	45	55	20	19800	46500	7650
		75.3	45	55	22	20500	49600	7650
		80	45	58	20	21600	50500	7650
	NK45/30		45	55	30	41000	88000	7650
	NKS45		45	60	22	40500	60000	7650
	RNA456227K		45	62	27
47	NK47/20		47	57	20	28500	56000	7650
47	NK47/30		47	57	30	43000	94000	7650
48	RNA4908	132	48	62	22	31000	63000	8120
	RNA5908	225	48	62	30	31000	63000	8120
	RNA6908	238	48	62	40	64000	112000	8120
50	RNA50/25	167	50	62	25	28000	67000	8140
	RNA50/35	236	50	62	35	32000	70100	8140
		328	50	65	34	40000	62000	8140
	NK50/14		50	64	14	32000	70100	8140
	NK50/15		50	65	15	40000	62000	8140
	NK50/27YA	257	50	67	27
	NKS50		50	65	22
	NK506825		50	68	25
52	RNA4909	163	52	68	22	37000	69500	7600
	RNA5909	232	52	68	30
	RNA6909	308	52	68	40	61500	123500	7600
55	NK55/25	167	55	68	25	30600	60800	7600
		210	55	68	25	36000	68000	7600
	NK55/30		55	68	30	48000	63000	7600
	NK55/35		55	68	35	55000	74000	7600
	NKS55		55	72	22	45000	74000	7600
58	RNA4910	161	58	72	22	41000	72000	7500
58	RNA6910	296	58	72	40	68000	135000	7500
60	NK60/25	154	60	72	25	39000	86000	7000
	NK60/35		60	72	35	56000	130000	7000
	NKS60		60	80	28	63000	98000	7000
63	RNA4911	241	63	80	25	50600	96580	7000
63	RNA6911	430	63	80	45	82560	172000	7000
65	NK65/25		65	78	25	44000	98000	7000
	NK65/35		65	78	35	59000	142000	7000
	NKS65		65	85	28	67000	108000	7000
68	RNA4912	257	68	85	25	52800	91050	7000
	RNA5912	408	68	85	34
	RNA6912	436	68	85	45	88500	186000	7000
	NK68/25		68	82	25	43500	89000	7000
70	NK70/25		70	85	25	44500	92000	6500
70	NK70/35		70	85	35	63000	144000	6500
72	RNA4913	300	72	90	25	57500	110500	6500
72	RNA6913	571	72	90	45	87600	194500	6500
75	NK75/25	315	75	92	25	54000	104000	6000
75	NK75/35	445	75	92	35	77000	162000	6000
80	RNA4914	400	80	100	30	79000	154000	5500
	RNA6914	815	80	100	54	121000	263000	5500
	NK80/25		80	95	25
	NK80/35		80	95	35
85	RNA4915	472	85	105	30	82000	158000	5500
	RNA5915	745	85	105	40
	RNA6915	923	85	105	54	128000	272000	5500
	NK85/25		85	105	25	69000	123000	5500
	NK85/35		85	105	35	98000	193000	5500
90	RNA4916	496	90	110	30	81000	170500	5000
	RNA6916	978	90	110	54	130500	280600	5000
	NK90/35		90	110	30	103000	20800	5000
95	NK95/26		95	115	26	73000	137000	4800
95	NK95/36		95	115	36	107000	223000	4800
96		496	96	115	29	73000	137000	4600
100	RNA4917	608	100	120	35	98000	207000	4600
	RNA6917	1112	100	120	63	161000	337000	4600
	NK100/30		100	120	30
	NK100/36		100	120	36	111000	237000	4600
105	RNA4918	713	105	125	35	98500	239000	4000
	RNA6918	1250	105	125	63	174000	38000	4000
	NK105/26		105	125	26	78000	155000	4000
	NK105/36		105	125	36	114000	250000	4000
110	RNA4919	685	110	130	35	112000	245000	3870
	RNA6919	1325	110	130	63	196000	400000	3870
	NK110/30		110	130	30	98000	21000	4200
	NK110/40		110	130	40	127000	29000	4200
115	RNA4920	1006	115	140	40	120000	264000	3700
	NK115/12		115	140	12
	NK115/15		115	140	15
120	NK120/40		120	140	40
125	RNA4922	1200	125	150	40	124000	270000	3300
135	RNA4924	1760	135	165	45	174000	386000	2900
160	RNA4928	2350	160	190	50	200000	460000	2900
