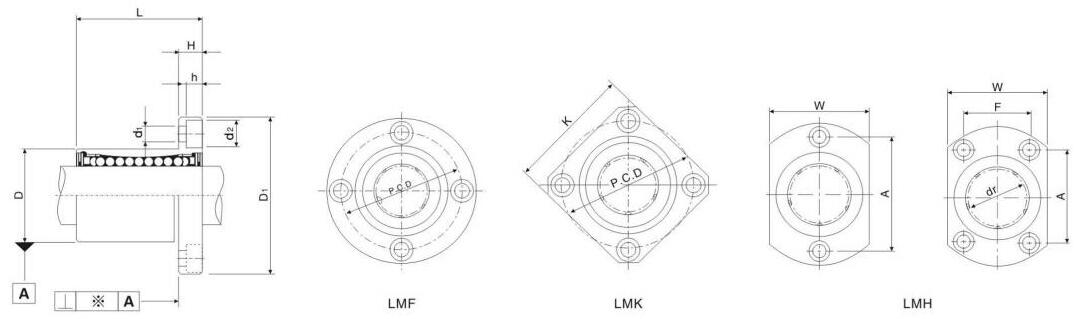

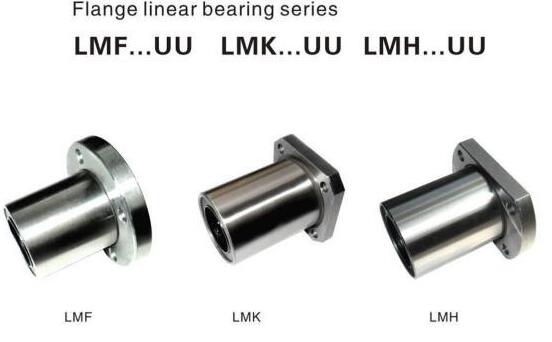

LMF...UU LMK...UU LMH...UU

Bearing No.	Ball circuit												Eccentricity	Basic load rating
		Inscribed circle diameter	Outer diameter	Length	Flange				hole for attachment			Squareness		Basic load rating
		Dr	D	L	D1	K	H	Ф	d1	d2	h	Squareness		C	Co
LMF6	4	6	12	19	28	22	5	20	3.5	6	3.1	0-0.012	0-0.012	21	27
LMK6	4	6	12	19	28	22	5	20	3.5	6	3.1			21	27
LMF8S	4	8	15	17	32	25	5	24	3.5	6	3.1			18	22
LMK8S	4	8	15	17	32	25	5	24	3.5	6	3.1			18	22
LMF8	4	8	15	24	32	25	5	24	3.5	6	3.1			28	40
LMK8	4	8	15	24	32	25	5	24	3.5	6	3.1			28	40
LMF10	4	10	19	29	40	30	6	29	4.5	7.5	4.1			38	56
LMK10	4	10	19	29	40	30	6	29	4.5	7.5	4.1			38	56
LMF12	4	12	21	30	42	32	6	32	4.5	7.5	4.1			52	80
LMK12	4	12	21	30	42	32	6	32	4.5	7.5	4.1			52	80
LMF13	4	13	23	32	43	34	6	33	4.5	7.5	4.1	0-0.015	0-0.015	52	80
LMK13	4	13	23	32	43	34	6	33	4.5	7.5	4.1			52	80
LMF16	5	16	28	37	48	38	6	38	4.5	7.5	4.1			79	120
LMK16	5	16	28	37	48	38	6	38	4.5	7.5	4.1			79	120
LMF20	5	20	32	42	54	42	8	43	5.5	9	5.1			90	140
LMK20	5	20	32	42	54	42	8	43	5.5	9	5.1			90	140
LMF25	6	25	40	59	62	50	8	51	5.5	9	5.1			100	160
LMK25	6	25	40	59	62	50	8	51	5.5	9	5.1			100	160
LMF30	6	30	45	64	74	58	10	60	6.6	11	6.1			160	280
LMK30	6	30	45	64	74	58	10	60	6.6	11	6.1			160	280
LMF35	6	35	52	70	82	64	10	67	6.6	11	6.1	0-0.020	0-0.020	170	320
LMK35	6	35	52	70	82	64	10	67	6.6	11	6.1			170	320
LMF40	6	40	60	80	96	75	13	78	9	14	8.1			220	410
LMK40	6	40	60	80	96	75	13	78	9	14	8.1			220	410
LMF50	6	50	80	100	116	92	18	98	9	14	8.1			390	810
LMK50	6	50	80	100	116	92	18	98	9	14	8.1			390	810
LMF60	6	60	90	110	134	106	18	112	11	17.5	10.8	0-0.025	0-0.025	480	1020
LMK60	6	60	90	110	134	106	18	112	11	17.5	10.8	0-0.025	0-0.025	480	1020
