LM...L LME...L

[ Shanghai Oupan Bearing Co.,LTD clicks： ]

LM: For Asia, metric size standard, linear shaft diameter tolerance is generally h7.
LME: For Europe, inch size as standard, linear shaft diameter tolerance is generally g6.

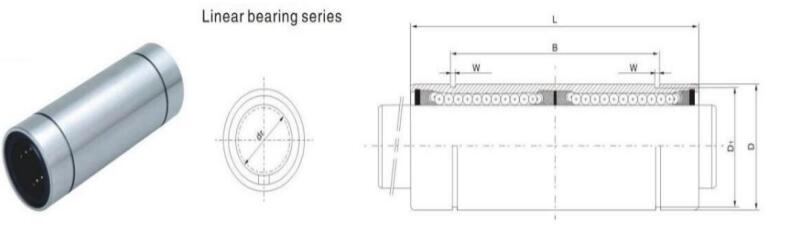

Bearing No.	Ball circuit	Main dimensions mm										Eccentricity	Basic load rating
		Inscribed circle diameter		Outer diameter		Length		Outer locking groove			W		Basic load rating
		Dr	Tolerance	D	Tolerance	L	Tolerance	B	Tolerance	D1	W		C	Co
LM6L	4	6	0-0.010	12	0-0.013	35	0-0.30	27	0-0.30	11.5	1.1	0.015	33	54
LM8L	4	8		15	0-0.013	45		35		14.3	1.1		44	80
LM10L	4	10		19	0-0.016	55		44		18	1.3		60	112
LM12L	4	12		21		57		46		20	1.3		83	160
LM13L	4	13		23		61		46		22	1.3		83	160
LM16L	5	16		28		70		53		27	1.6		126	240
LM20L	5	20	0-0.012	32	0-0.019	80		61		30.5	1.6	0.02	143	280
LM25L	6	25		40		112	0-0.4	82	0-0.4	38	1.85		159	320
LM30L	6	30		45		123		89		43	1.85		254	560
LM35L	6	35	0-0.015	52	0-0.022	135		99		49	2.1	0.025	270	640
LM40L	6	40		60		151		121		57	2.1		350	820
LM50L	6	50		80		192		148		76.5	2.6		620	1622
LM60L	6	60	0-0.020	90	0-0.025	209		170		86.5	3.15		770	2040

Bearing No.	Ball circuit	Main dimensions mm										Eccentricity	Basic load rating
		Inscribed circle diameter		Outer diameter		Length		Outer locking groove			W		Basic load rating
		Dr	Tolerance	D	Tolerance	L	Tolerance	B	Tolerance	D1	W		C	Co
LME8L	4	8	0-0.010	16	0-0.009	46	0-0.30	33	0-0.30	15.2	1.1	0.015	43	80
LME10L	4	10		19	0-0.001	55		44		18	1.3		60	112
LME12L	4	12		22		61		45.8		21	1.3		83	160
LME16L	5	16		26		68		49.8		24.9	1.3		94	182
LME20L	5	20	0-0.012	32	0-0.013	80		61		30.5	1.6	0.017	140	280
LME25L	6	25		40		112	0-0.4	82	0-0.40	38	1.85		160	320
LME30L	6	30		47		123		104.2		44.5	1.85		255	560
LME40L	6	40	0-0.015	62	0-0.015	151		121.2		59	2.15	0.02	350	820
LME50L	6	50	0-0.015	75	0-0.015	192		155.2		72	2.65	0.02	620	1622
LME60L	6	60	0-0.020	90	0-0.020	209		170		86.5	3.15	0.025	770	2040
