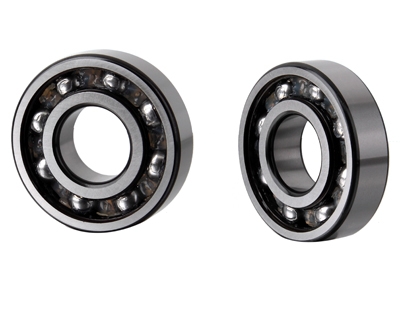

Single row deep groove ball bearings are the most frequently used type of rolling bearing. They are produced in numerous sizes and designs and are particularly economical.

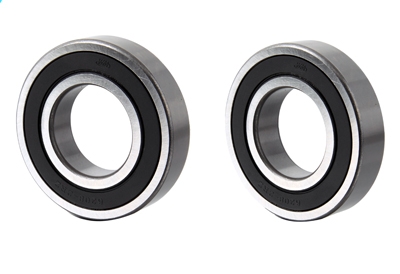

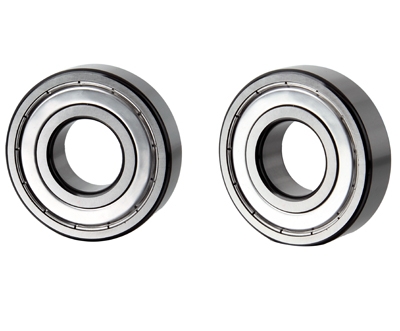

Sealing:
Open bearings are suitable for high to very high speeds.
Deep groove ball bearings with the suffix
Bearings with the suffix
Lubrication:
Open bearings can be lubricated with grease or oil.
Deep groove ball bearings with gap or lip seals on both sides are greased with a high quality grease and are lubricated for life.

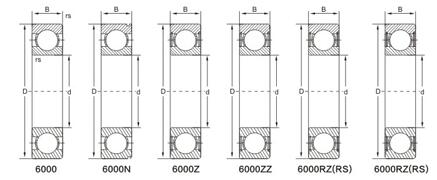

60 series
|
Bearing No. |
Boundary dimensions (mm) |
Basic load rating |
Limiting speeds |
Mass |
|||||
|---|---|---|---|---|---|---|---|---|---|
|
OUPAN |
d |
D |
B |
rs min |
Cr |
Cor |
Grease |
Oil |
|
|
60/1.5 |
1.5 |
6 |
2.5 |
0.15 |
0.274 |
0.086 |
71,000 |
84,000 |
0.35g |
|
60/2.5 |
2.5 |
8 |
2.8 |
0.15 |
0.55 |
0.174 |
56,000 |
66,000 |
0.72g |
|
602 |
2 |
7 |
2.8 |
0.15 |
0.38 |
0.125 |
62,000 |
73,000 |
0.54g |
|
603 |
3 |
9 |
3 |
0.15 |
0.635 |
0.219 |
50,000 |
59,000 |
0.92g |
|
604 |
4 |
12 |
4 |
0.2 |
0.97 |
0.36 |
43,000 |
51,000 |
2.1g |
|
605 |
5 |
14 |
5 |
0.2 |
1.33 |
0.505 |
39,000 |
46,000 |
3.5g |
|
606 |
6 |
17 |
6 |
0.3 |
2.19 |
0.865 |
35,000 |
42,000 |
6g |
|
607 |
7 |
19 |
6 |
0.3 |
2.24 |
0.91 |
34,000 |
40,000 |
8g |
|
608 |
8 |
22 |
7 |
0.3 |
3.35 |
1.4 |
32,000 |
37,000 |
12g |
|
609 |
9 |
24 |
7 |
0.3 |
3.1 |
1.45 |
31,000 |
36,000 |
14g |
|
6000 |
10 |
26 |
8 |
0.3 |
4.55 |
1.96 |
29,000 |
34,000 |
0.019 |
|
6001 |
12 |
28 |
8 |
0.3 |
5.10 |
2.39 |
26,000 |
30,000 |
0.021 |
|
6002 |
15 |
32 |
9 |
0.3 |
5.60 |
2.83 |
22,000 |
26,000 |
0.03 |
|
6003 |
17 |
35 |
10 |
0.3 |
6.80 |
3.35 |
20,000 |
24,000 |
0.039 |
|
6004 |
20 |
42 |
12 |
0.6 |
9.4 |
5.05 |
18,000 |
21,000 |
0.069 |
|
60/22 |
22 |
44 |
12 |
0.6 |
955 |
515 |
17,000 |
20,000 |
0.074 |
|
6005 |
25 |
47 |
12 |
0.6 |
10.1 |
5.85 |
15,000 |
18,000 |
0.08 |
|
60/28 |
28 |
52 |
12 |
0.6 |
1270 |
755 |
14,000 |
16,000 |
0.098 |
|
6006 |
30 |
55 |
13 |
1 |
13.2 |
8.3 |
13,000 |
15,000 |
0.116 |
|
60/32 |
32 |
58 |
13 |
1 |
1200 |
820 |
12,000 |
15,000 |
0.129 |
|
6007 |
35 |
62 |
14 |
1 |
16.0 |
10.3 |
12,000 |
14,000 |
0.155 |
|
6008 |
40 |
68 |
15 |
1 |
16.8 |
11.5 |
10,000 |
12,000 |
0.19 |
|
6009 |
45 |
75 |
16 |
1 |
21.0 |
15.1 |
9,200 |
11,000 |
0.237 |
|
6010 |
50 |
80 |
16 |
1 |
21.8 |
16.6 |
8,400 |
9,800 |
0.261 |
|
6011 |
55 |
90 |
18 |
1.1 |
28.3 |
21.2 |
7,700 |
9,000 |
0.388 |
|
6012 |
60 |
95 |
18 |
1.1 |
29.5 |
23.2 |
7,000 |
8,300 |
0.414 |
|
6013 |
65 |
100 |
18 |
1.1 |
30.5 |
25.2 |
6,500 |
7,700 |
0.421 |
|
6014 |
70 |
110 |
20 |
1.1 |
38.0 |
31.0 |
6,100 |
7,100 |
0.604 |
|
6015 |
75 |
115 |
20 |
1.1 |
39.5 |
33.5 |
5,700 |
6,700 |
0.649 |
|
6016 |
80 |
125 |
22 |
1.1 |
47.5 |
40.0 |
5,300 |
6,200 |
0.854 |
|
6017 |
85 |
130 |
22 |
1.1 |
49.5 |
43.0 |
5,000 |
5,900 |
0.89 |
|
6018 |
90 |
140 |
24 |
1.5 |
58.0 |
49.5 |
4,700 |
5,600 |
1.02 |
|
6019 |
95 |
145 |
24 |
1.5 |
60.5 |
54.0 |
4,500 |
5,300 |
1.08 |
|
6020 |
100 |
150 |
24 |
1.5 |
60.0 |
54.0 |
4,200 |
5,000 |
1.15 |
|
6021 |
105 |
160 |
26 |
2 |
72.5 |
65.5 |
4,000 |
4,700 |
1.59 |
|
6022 |
110 |
170 |
28 |
2 |
82.0 |
73 |
3,800 |
4,500 |
1.96 |
|
6024 |
120 |
180 |
28 |
2 |
85.0 |
79.5 |
3,500 |
4,100 |
2.07 |
|
6026 |
130 |
200 |
33 |
2 |
106 |
101 |
3,200 |
3,800 |
3.16 |
|
6028 |
140 |
210 |
33 |
2 |
110 |
109 |
3,000 |
3,500 |
3.35 |
|
6030 |
150 |
225 |
35 |
2.1 |
126 |
126 |
2,800 |
3,200 |
4.08 |
|
6032 |
160 |
240 |
38 |
2.1 |
143 |
144 |
2,600 |
3,000 |
5.05 |
|
6034 |
170 |
260 |
42 |
2.1 |
168 |
172 |
2,400 |
2,800 |
6.76 |
|
6036 |
180 |
280 |
46 |
2.1 |
189 |
199 |
2,300 |
2,700 |
8.8 |
|
6038 |
190 |
290 |
46 |
2.1 |
197 |
215 |
2,100 |
2,500 |
9.18 |
|
6040 |
200 |
310 |
51 |
2.1 |
218 |
243 |
2,000 |
2,400 |
11.9 |

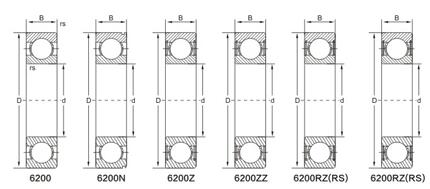

62 series
|
Bearing No. |
Boundary dimensions (mm) |
Basic load rating |
Limiting speeds |
Mass |
|||||
|---|---|---|---|---|---|---|---|---|---|
|
OUPAN |
d |
D |
B |
rs min |
Cr |
Cor |
Grease |
Oil |
|
|
623 |
3 |
10 |
4 |
0.15 |
0.64 |
0.224 |
50,000 |
58,000 |
1.6g |
|
624 |
4 |
13 |
5 |
0.2 |
1.31 |
0.49 |
42,000 |
49,000 |
3.2g |
|
625 |
5 |
16 |
5 |
0.3 |
1.76 |
0.68 |
37,000 |
44,000 |
4.8g |
|
626 |
6 |
19 |
6 |
0.3 |
2.34 |
0.885 |
34,000 |
40,000 |
8.1g |
|
627 |
7 |
22 |
7 |
0.3 |
3.35 |
1.40 |
32,000 |
37,000 |
13g |
|
628 |
8 |
24 |
8 |
0.3 |
4.00 |
1.59 |
31,000 |
36,000 |
17g |
|
629 |
9 |
26 |
8 |
0.6 |
4.55 |
1.96 |
30,000 |
35,000 |
20g |
|
6200 |
10 |
30 |
9 |
0.6 |
5.1 |
2.39 |
25,000 |
30,000 |
0.032 |
|
6201 |
12 |
32 |
10 |
0.6 |
6.1 |
2.75 |
22,000 |
26,000 |
0.037 |
|
6202 |
15 |
35 |
11 |
0.6 |
7.75 |
3.60 |
19,000 |
23,000 |
0.045 |
|
6203 |
17 |
40 |
12 |
0.6 |
9.6 |
4.60 |
18,000 |
21,000 |
0.066 |
|
6204 |
20 |
47 |
14 |
1 |
12.8 |
6.65 |
16,000 |
18,000 |
0.106 |
|
62/22 |
22 |
50 |
14 |
1 |
1320 |
690 |
14,000 |
17,000 |
0.117 |
|
6205 |
25 |
52 |
15 |
1 |
14.0 |
7.85 |
13,000 |
15,000 |
0.128 |
|
62/28 |
28 |
58 |
16 |
1 |
1830 |
995 |
12,000 |
14,000 |
0.171 |
|
6206 |
30 |
62 |
16 |
1 |
19.5 |
11.3 |
11,000 |
13,000 |
0.199 |
|
62/32 |
32 |
65 |
17 |
1 |
2110 |
1190 |
11,000 |
12,000 |
0.226 |
|
6207 |
35 |
72 |
17 |
1.1 |
25.7 |
15.3 |
9,800 |
11,000 |
0.288 |
|
6208 |
40 |
80 |
18 |
1.1 |
29.1 |
17.8 |
8,700 |
10,000 |
0.366 |
|
6209 |
45 |
85 |
19 |
1.1 |
32.5 |
20.4 |
7,800 |
9,200 |
0.398 |
|
6210 |
50 |
90 |
20 |
1.1 |
35.0 |
23.2 |
7,100 |
8,300 |
0.454 |
|
6211 |
55 |
100 |
21 |
1.5 |
43.5 |
29.2 |
6,400 |
7,600 |
0.601 |
|
6212 |
60 |
110 |
22 |
1.5 |
52.5 |
36.0 |
6,000 |
7,000 |
0.783 |
|
6213 |
65 |
120 |
23 |
1.5 |
57.5 |
40.0 |
5,500 |
6,500 |
0.99 |
|
6214 |
70 |
125 |
24 |
1.5 |
62.0 |
44.0 |
5,100 |
6,000 |
1.07 |
|
6215 |
75 |
130 |
25 |
1.5 |
66.0 |
49.5 |
4,800 |
5,600 |
1.18 |
|
6216 |
80 |
140 |
26 |
2 |
72.5 |
53.0 |
4,500 |
5,300 |
1.4 |
|
6217 |
85 |
150 |
28 |
2 |
83.5 |
64.0 |
4,200 |
5,000 |
1.79 |
|
6218 |
90 |
160 |
30 |
2 |
96.0 |
71.5 |
4,000 |
4,700 |
2.15 |
|
6219 |
95 |
170 |
32 |
2.1 |
109 |
82.0 |
3,700 |
4,400 |
2.62 |
|
6220 |
100 |
180 |
34 |
2.1 |
122 |
93.0 |
3,500 |
4,200 |
3.14 |
|
6221 |
105 |
190 |
36 |
2.1 |
133 |
105 |
3,400 |
4,000 |
3.7 |
|
6222 |
110 |
200 |
38 |
2.1 |
144 |
117 |
3,200 |
3,800 |
4.36 |
|
6224 |
120 |
215 |
40 |
2.1 |
155 |
131 |
2,900 |
3,400 |
5.15 |
|
6226 |
130 |
230 |
40 |
3 |
167 |
146 |
2,700 |
3,100 |
5.82 |
|
6228 |
140 |
250 |
42 |
3 |
166 |
150 |
2,500 |
2,900 |
7.57 |
|
6230 |
150 |
270 |
45 |
3 |
176 |
168 |
2,300 |
2,700 |
9.41 |
|
6232 |
160 |
290 |
48 |
3 |
185 |
186 |
2,100 |
2,500 |
11.7 |
|
6234 |
170 |
310 |
52 |
4 |
212 |
223 |
2,000 |
2,400 |
14.5 |
|
6236 |
180 |
320 |
52 |
4 |
227 |
241 |
1,900 |
2,200 |
15.1 |
|
6238 |
190 |
340 |
55 |
4 |
255 |
281 |
1,800 |
2,100 |
18.2 |
|
6240 |
200 |
360 |
58 |
4 |
269 |
310 |
1,700 |
2,000 |
21.6 |
|
6244 |
220 |
400 |
65 |
4 |
297 |
365 |
1,500 |
1,800 |
30.2 |

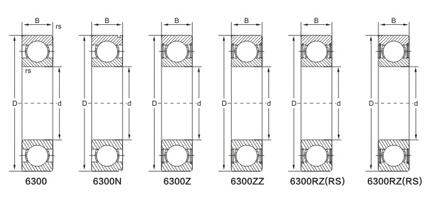

63 series
|
Bearing No. |
Boundary dimensions (mm) |
Basic load rating |
Limiting speeds |
Mass |
||||
|---|---|---|---|---|---|---|---|---|
|
OUPAN |
d |
D |
B |
Cr |
Cor |
Grease |
Oil |
|
|
634 |
4 |
16 |
5 |
1.88 |
0.68 |
32000 |
40000 |
0.005 |
|
635 |
5 |
19 |
6 |
2.80 |
1.02 |
28000 |
36000 |
0.008 |
|
6300 |
10 |
35 |
11 |
7.65 |
3.48 |
18000 |
24000 |
0.053 |
|
6301 |
12 |
37 |
12 |
9.72 |
5.08 |
17000 |
22000 |
0.060 |
|
6302 |
15 |
42 |
13 |
11.5 |
5.42 |
16000 |
20000 |
0.082 |
|
6303 |
17 |
47 |
14 |
13.5 |
6.58 |
15000 |
18000 |
0.115 |
|
6304 |
20 |
52 |
15 |
15.8 |
7.88 |
13000 |
16000 |
0.142 |
|
6305 |
25 |
62 |
17 |
20.6 |
11.3 |
11000 |
13000 |
0.232 |
|
6306 |
30 |
72 |
19 |
26.7 |
15.0 |
6600 |
12000 |
0.346 |
|
6307 |
35 |
80 |
21 |
33.4 |
19.3 |
8500 |
10000 |
0.457 |
|
6308 |
40 |
90 |
23 |
40.8 |
24.0 |
7000 |
8500 |
0.639 |
|
6309 |
45 |
100 |
25 |
52.8 |
31.8 |
6300 |
7500 |
0.837 |
|
6310 |
50 |
110 |
27 |
61.8 |
38.0 |
6000 |
7000 |
1.082 |
|
6311 |
55 |
120 |
29 |
71.5 |
44.8 |
5600 |
6700 |
1.367 |
|
6312 |
60 |
130 |
31 |
81.8 |
51.8 |
5000 |
6000 |
1.710 |
|
6313 |
65 |
140 |
33 |
93.8 |
60.5 |
4500 |
5300 |
2.10 |
|
6314 |
70 |
150 |
35 |
105 |
68.0 |
4300 |
5000 |
2.55 |
|
6315 |
75 |
160 |
37 |
113 |
76.8 |
4000 |
4800 |
3.05 |
|
6316 |
80 |
170 |
39 |
123 |
86.5 |
3800 |
4500 |
3.61 |
|
6317 |
85 |
180 |
41 |
132 |
96.5 |
3600 |
4300 |
4.284 |
|
6318 |
90 |
190 |
43 |
145 |
108 |
3400 |
4000 |
4.97 |
|
6319 |
95 |
200 |
45 |
157 |
122 |
3200 |
3800 |
5.74 |
|
6320 |
100 |
215 |
47 |
173 |
140 |
2800 |
3600 |
7.09 |
|
6321 |
105 |
225 |
49 |
184 |
153 |
2600 |
3200 |
8.05 |
|
6322 |
110 |
240 |
50 |
205 |
178 |
2400 |
3000 |
9.53 |
|
6324 |
120 |
260 |
55 |
228 |
208 |
2200 |
2800 |
12.2 |
|
6326 |
130 |
280 |
58 |
253 |
242 |
2000 |
2600 |
14.77 |
|
6328 |
140 |
300 |
62 |
275 |
272 |
1900 |
2400 |
18.33 |
|
6330 |
150 |
320 |
65 |
288 |
295 |
1700 |
2200 |
21.87 |
|
6332 |
160 |
340 |
68 |
313 |
340 |
1600 |
2000 |
26.43 |
|
6334 |
170 |
360 |
72 |
335 |
378 |
1500 |
1900 |
31.14 |
64 series
|
Bearing No. |
Boundary dimensions (mm) |
Basic load rating |
Limiting speeds |
Mass |
|||||
|---|---|---|---|---|---|---|---|---|---|
|
OUPAN |
d |
D |
B |
rs min |
Cr |
Cor |
Grease |
Oil |
|
|
6403 |
17 |
62 |
17 |
1.1 |
22.7 |
10.8 |
14,000 |
16,000 |
0.27 |
|
6404 |
20 |
72 |
19 |
1.1 |
28.5 |
13.9 |
12,000 |
14,000 |
0.4 |
|
6405 |
25 |
80 |
21 |
1.5 |
34.5 |
17.5 |
10,000 |
12,000 |
0.53 |
|
6406 |
30 |
90 |
23 |
1.5 |
43.5 |
23.9 |
8,800 |
10,000 |
0.735 |
|
6407 |
35 |
100 |
25 |
1.5 |
55.0 |
31.0 |
7,800 |
9,100 |
0.952 |
|
6408 |
40 |
110 |
27 |
2 |
63.5 |
36.5 |
7,000 |
8,200 |
1.23 |
|
6409 |
45 |
120 |
29 |
2 |
77.0 |
45.0 |
6,300 |
7,400 |
1.53 |
|
6410 |
50 |
130 |
31 |
2.1 |
83.0 |
49.5 |
5,700 |
6,700 |
1.88 |
|
6411 |
55 |
140 |
33 |
2.1 |
89.0 |
54.0 |
5,200 |
6,100 |
2.29 |
|
6412 |
60 |
150 |
35 |
2.1 |
102 |
64.5 |
4,800 |
5,700 |
2.77 |
|
6413 |
65 |
160 |
37 |
2.1 |
111 |
72.5 |
4,400 |
5,200 |
3.3 |
|
6414 |
70 |
180 |
42 |
3 |
128 |
89.5 |
4,100 |
4,800 |
4.83 |
|
6415 |
75 |
190 |
45 |
3 |
138 |
99.0 |
3,800 |
4,500 |
5.72 |
|
6416 |
80 |
200 |
48 |
3 |
164 |
125 |
3,600 |
4,200 |
6.76 |
61 series
|
Bearing No. |
Boundary dimensions (mm) |
Mass |
||
|---|---|---|---|---|
|
OUPAN |
d |
D |
B |
|
|
616 |
6 |
17 |
6 |
0.006 |
|
617 |
7 |
19 |
6 |
0.007 |
|
618 |
8 |
22 |
7 |
0.012 |
|
6100 |
10 |
26 |
8 |
0.019 |
|
6101 |
12 |
28 |
8 |
0.021 |
|
6102 |
15 |
32 |
9 |
0.026 |
|
6103 |
17 |
35 |
10 |
0.036 |
|
6104 |
20 |
42 |
12 |
0.069 |
|
6105 |
25 |
47 |
12 |
0.075 |
|
6106 |
30 |
55 |
13 |
0.09 |
|
6107 |
35 |
62 |
14 |
0.16 |
|
6108 |
40 |
68 |
15 |
0.023 |
|
6109 |
45 |
75 |
16 |
0.24 |
|
6110 |
50 |
80 |
16 |
0.26 |
|
6111 |
55 |
90 |
18 |
0.38 |
|
6112 |
60 |
95 |
18 |
0.41 |
|
6113 |
65 |
100 |
18 |
0.43 |
|
6114 |
70 |
110 |
20 |
0.6 |
|
6115 |
75 |
115 |
20 |
0.6 |
|
6116 |
80 |
125 |
22 |
0.86 |
|
6117 |
85 |
130 |
22 |
0.9 |
|
6118 |
90 |
140 |
24 |
1.16 |
|
6119 |
95 |
145 |
24 |
1.18 |
|
6120 |
100 |
150 |
24 |
1.25 |
|
6121 |
105 |
160 |
26 |
1.62 |
|
6122 |
110 |
170 |
28 |
2.1 |
|
6124 |
120 |
180 |
28 |
2.4 |
|
6126 |
130 |
200 |
28 |
3.3 |
|
6128 |
140 |
210 |
33 |
3.9 |
|
6130 |
150 |
225 |
35 |
4.8 |
|
6132 |
160 |
240 |
38 |
5.9 |
|
6134 |
170 |
260 |
42 |
7.09 |
|
6136 |
180 |
280 |
46 |
10.65 |
|
6138 |
190 |
290 |
46 |
11.14 |
|
6140 |
200 |
310 |
51 |
14.8 |
|
6144 |
220 |
340 |
56 |
19 |
|
6148 |
240 |
360 |
56 |
20.7 |
|
6156 |
280 |
420 |
65 |
32.1 |
|
6160 |
300 |
460 |
74 |
42.8 |
|
6164 |
320 |
480 |
74 |
48.4 |
|
6172 |
360 |
540 |
82 |
68 |
|
6180 |
400 |
600 |
90 |
87.4 |
|
6188 |
440 |
650 |
94 |
107.12 |
