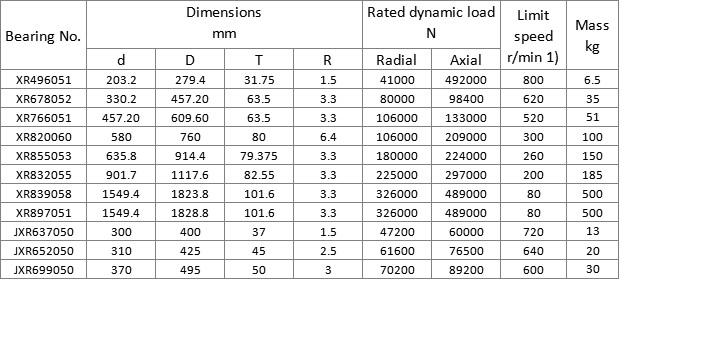

XR JXR

[ Shanghai Oupan Bearing Co.,LTD clicks: ]

Crossed tapered roller bearing is a distortion of crossed cylindrical roller bearings, the rolling element is tapered roller, adjacent rollers are arranged 90 degrees cross, tapered roller rolling surface of rotary line extension node to be located below. The characteristics of this bearing is bearing do pure rolling when rolling element in the process of movement, avoid the relative sliding, so the speed limit is much higher than cross roller bearing, but friction torque lower than crossed cylindrical roller bearing.

Bearing characteristics:
High accuracy: the accuracy can reach p4, p2 level
High rigidity: this series bearing all has pre-load
High load: they can withstand radial load, axial load and torque load
High rotate speed: bearing do pure rolling when rolling element in the process of movement, avoid the relative sliding, so the speed limit is much higher than cross roller bearing,
Low friction: friction torque lower than crossed cylindrical roller bearing.


Application:
Widely used in high-speed car, high-precision worktable, vertical boring bed, grinding spindle.
