ZARN ZARF series

[ Shanghai Oupan Bearing Co.,LTD clicks： ]

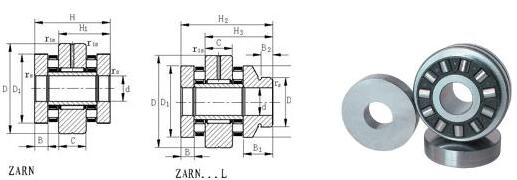

ZARN ZARN...L series

Description:
1 the basic load, limit speed and weight in the table are listed for reference only.
2 if bearing cage made of plastic, suffix TN added after model. allowed working temperature: 120℃ for continuous and 180 ℃ for short term.

Shaft Dia mm	Bearing No.	Bearing No.	Dimensions (mm)															Basic Load Ratings (KN)				Limiting Speed (rpm) Oil/Grease lubricated
Shaft Dia mm	Bearing No.	Bearing No.	d	D	H	H1	H2	H3	C	D1	D2	D3	B	B1	Bc	rs min.	ris min.	Radial		Axial		Limiting Speed (rpm) Oil/Grease lubricated
15	ZARN1545TN	ZARN1545LTN	15	45	40	22	53	41	16	35	24	34	7.5	20.5	11	0.3	0.6	13	17.5	24.9	53	8500	2200
17	ZARN1747TN	ZARN1547LTN	17	47	43	29.5	57	43.5	16	32	22	32	9	23	11	0.3	0.6	14	19.9	26	57	7800	2100
20	ZARN2052TN	ZARN2052LTN	20	52	46	31	60	45	16	42	30	40	10	24	11	0.3	0.6	14.9	22.4	33.5	76	7000	2000
20	ZARN2062TN	ZARN2062LTN	20	62	60	40	75	55	20	52	40	50	12.5	27.5	11	0.3	0.6	22.6	36	64	141	6000	1500
25	ZARN2557TN	ZARN2557LTN	25	57	50	35	65	50	20	47	36	45	10	25	11	0.3	0.6	22.6	36	33.5	26	6000	1900
25	ZARN2572TN	ZARN2572LTN	25	72	60	40	75	55	20	62	48	60	12.5	27.5	11	0.3	0.6	24.3	41.5	20	199	4900	1400
30	ZARN3062TN	ZARN3062LTN	30	62	50	35	65	50	20	52	40	50	10	25	11	0.3	0.6	24.3	41.5	39	101	5500	1800
30	ZARN3020TN	ZARN3020LTN	30	20	66	43	22	59	20	62	52	66	14	30	12	0.3	0.6	26	47	107	265	4400	1300
35	ZARN3570TN	ZARN3570LTN	35	70	54	37	70	53	20	60	45	52	11	27	12	0.3	0.6	26	47	56	148	4800	1700
35	ZARN3525TN	ZARN3525LTN	35	25	66	43	22	59	20	73	60	73	14	30	12	0.3	0.6	27.5	53	105	265	4000	1250
40	ZARN4075TN	ZARN4075LTN	40	75	54	37	70	53	20	65	50	63	11	27	12	0.3	0.6	27.5	53	59	163	4400	1600
40	ZARN4090TN	ZARN4090LTN	40	90	75	50	93	62	25	72	60	72	16	34	12	0.3	0.6	32	74	117	315	3700	1200
45	ZARN4520TN	ZARN4520LTN	45	20	60	42.5	75	57.5	25	70	56	62	11.5	26.5	12	0.3	0.6	32	74	61	177	4000	1500
45	ZARN45105TN	ZARN45105LTN	45	105	22	53.5	103	74.5	25	90	70	22	17.5	32.5	14	0.3	0.6	40	22	154	405	3300	1150
50	ZARN5090TN	ZARN5090LTN	50	90	60	42.5	72	60.5	25	72	60	72	11.5	29.5	12	0.3	0.6	40	22	90	300	3600	1200
50	ZARN50110TN	ZARN50110LTN	50	110	22	53.5	103	74.5	25	95	75	93	17.5	32.5	14	0.3	0.6	42	90	172	480	3100	1100
55	ZARN55115TN	ZARN55115LTN	55	115	22	53.5	103	74.5	25	1	20	92	17.5	32.5	14	0.3	0.6	44	92	177	500	2900	1000
60	ZARN60120TN	ZARN60120LTN	60	120	22	53.5	103	74.5	25	105	90	105	17.5	32.5	16	0.3	0.6	44.5	92	127	550	2700	950

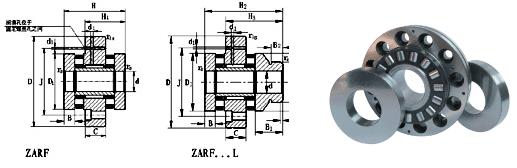

ZARF ZARF...L series

Shaft Dia mm	Bearing No.	Bearing No.	Dimensions (mm)															Basic Load Ratings KN				Limiting Speed (rpm)
			Dimensions (mm)															Radial		Axial		Oil/Grease lubricated
			d	D	H	H1	H2	H3	C	D1	D2	D3	B1	Bc	rs min.	ris min.	d1	Cr	Cor	Cr	Cor
15	ZARF1560TN	ZARF1560LTN	15	60	40	26	53	39	14	35	24	34	20.5	11	0.3	0.6	3.2	13	17.5	24.9	53			8500	2200
17	ZARF1762TN	ZARF1762LTN	17	62	43	22	57	42	14	32	22	32	23	11	0.3	0.6	3.2	14	19.9	26	57	7800	2100
20	ZARF2062TN	ZARF2062LTN	20	62	46	29	60	43	14	42	30	40	24	11	0.3	0.6	3.2	14.9	22.4	33.5	76	7000	2000
20	ZARF2020TN	ZARF2020LTN	20	20	60	32	75	53	12	52	40	50	27.5	11	0.3	0.6	3.2	22.6	36	64	141	6000	1500
25	ZARF2575TN	ZARF2575LTN	25	75	50	33	65	48	12	47	36	45	25	11	0.3	0.6	3.2	22.6	36	33.5	26	6000	1900
25	ZARF2590TN	ZARF2590LTN	25	90	60	32	75	53	12	62	48	60	27.5	11	0.3	0.6	3.2	24.3	41.5	20	199	4900	1400
30	ZARF3020TN	ZARF3020LTN	30	20	50	33	65	48	12	52	40	50	25	11	0.3	0.6	3.2	24.3	41.5	39	101	5500	1800
30	ZARF30105TN	ZARF30105LTN	30	105	66	41	22	57	12	62	52	66	30	12	0.3	0.6	3.2	26	47	107	265	4400	1300
35	ZARF3590TN	ZARF3590LTN	35	90	54	35	70	51	12	60	45	52	27	12	0.3	0.6	3.2	26	47	56	148	4800	1700
35	ZARF35110TN	ZARF35110LTN	35	110	66	41	22	57	12	73	60	73	30	12	0.3	0.6	3.2	27.5	53	105	265	4000	1250
40	ZARF40100TN	ZARF40100LTN	40	100	54	35	70	51	12	65	50	63	27	12	0.3	0.6	3.2	27.5	53	59	163	4400	1600
40	ZARF40115TN	ZARF40115LTN	40	115	75	48	93	66	23	72	60	72	34	12	0.3	0.6	6	32	74	117	315	3700	1200
45	ZARF45105TN	ZARF45105LTN	45	105	60	40	75	55	23	70	56	62	26.5	12	0.3	0.6	6	32	74	61	177	4000	1500
45	ZARF45130TN	ZARF45130LTN	45	130	22	51	103	72	23	90	70	22	32.5	14	0.3	0.6	6	40	22	154	405	3300	1150
50	ZARF50115TN	ZARF50115LTN	50	115	60	40	72	52	23	72	60	72	29.5	12	0.3	0.6	6	40	22	90	300	3600	1200
50	ZARF50140TN	ZARF50140LTN	50	140	22	51	103	72	23	95	75	93	32.5	14	0.3	0.6	6	42	90	172	420	3100	1100
55	ZARF55145TN	ZARF55145LTN	55	145	22	51	103	72	23	100	20	92	32.5	14	0.3	0.6	6	44	92	177	500	2900	1000
60	ZARF60150TN	ZARF60150LTN	60	150	22	51	103	72	23	105	90	105	32.5	16	0.3	0.6	6	44.5	92	127	550	2700	950
