Round hole relubricating series
[ Shanghai Oupan Bearing Co.,LTD clicks： ]
|
Bearing No. |

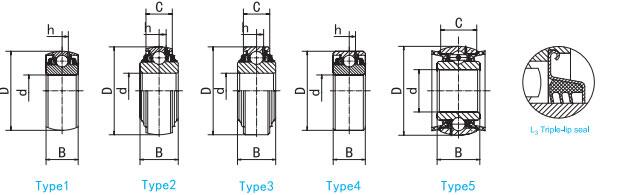

Type |
Dimensions ( in./mm) |
Dynamic load ratings (N) |
Static load ratings (N) |
Weight (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|
|
d |
D |
C |
B |
h |
|||||
|
GW205PPB7 |
2 |
0.9375 23.81 |
2.0472 52 |
0.5906 15 |
1.3780 35 |
0.1693 4.30 |
14000 |
7850 |
0.202 |
|
GW208PPB7 |
2 |
1.1880 30.18 |
3.1496 80 |
0.9450 24 |
1.1890 30.2 |
0.2520 6.40 |
29500 |
18100 |
0.600 |
|
GW209PPB2 |
1 |
1.7717 45 |
3.3465 85 |
1.1890 30.2 |
1.1890 30.2 |
0.2598 6.60 |
32700 |
20900 |
0.582 |
|
GW209PPB4 |
1 |
1.5354 39 |
3.3465 85 |
1.1890 30.2 |
1.1890 30.2 |
0.2598 6.60 |
32700 |
20900 |
0.603 |
|
GW209PPB11 |
2 |
1.7811 45.24 |
3.3465 85 |
0.8660 22 |
1.4370 36.5 |
0.2598 6.60 |
32700 |
20900 |
0.573 |
|
GW210PPB2 |
1 |
1.9380 49.23 |
3.5433 90 |
1.1890 30.2 |
1.1890 30.2 |
0.2598 6.60 |
35000 |
23200 |
0.616 |
|
GW210PP3 |
4 |
1.4766 37.53 |
3.5433 90 |
1.1890 30.2 |
1.1890 30.2 |
0.2598 6.60 |
35000 |
23200 |
1.022 |
|
GW210PPB5 |
1 |
1.7850 45.34 |
3.5433 90 |
1.1890 30.2 |
1.1890 30.2 |
0.2598 6.60 |
35000 |
23200 |
0.648 |
|
GW210PPB9 |
3 |
1.9449 49.4 |
3.5433 90 |
0.9055 23 |
1.4370 36.5 |
0.2598 6.60 |
35000 |
23200 |
0.793 |
|
GW211PP2 |
4 |
2.1890 55.58 |
3.9370 100 |
1.3126 33.3 |
1.3126 33.3 |
0.2992 7.60 |
43300 |
29200 |
0.880 |
|
GW211PPB2 |
1 |
2.1890 55.58 |
3.9370 100 |
1.3126 33.3 |
1.3126 33.3 |
0.2992 7.60 |
43300 |
29200 |
0.810 |
|
GW211PPB8 |
2 |
2.1890 55.58 |
3.9370 100 |
0.9840 25 |
1.3126 33.3 |
0.2992 7.60 |
43300 |
29200 |
0.750 |
|
GW211PPB9 |
2 |
2.1949 55.75 |
3.9370 100 |
0.9840 25 |
1.5630 39.7 |
0.2992 7.60 |
43300 |
29200 |
0.917 |
|
GW211PPB10 |
1 |
1.9380 49.23 |
3.9370 100 |
1.3126 33.3 |
1.3126 33.3 |
0.2992 7.60 |
43300 |
29200 |
1.026 |
|
GW211PPB13 |
2 |
1.7850 45.34 |
3.9370 100 |
0.9840 25 |
1.3126 33.3 |
0.2992 7.60 |
43300 |
29200 |
0.985 |
|
GW211PPB14 |
2 |
2.0150 51.18 |
3.9370 100 |
0.9840 25 |
1.3126 33.3 |
0.2992 7.60 |
43300 |
29200 |
0.990 |
|
GW211PPB20 |
5 |
2.1949 55.75 |
3.9370 100 |
1.2992 33 |
1.5748 40 |
0.3189 8.1 |
43300 |
29200 |
1.038 |
|
GW214PP2 |
4 |
2.7559 70 |
4.9213 125 |
1.5630 39.7 |
1.5630 39.7 |
0.3543 9.00 |
62100 |
44800 |
1.902 |
|
GW214PPB2 |
1 |
2.7559 70 |
4.9213 125 |
1.5630 39.7 |
1.5630 39.7 |
0.3543 9.00 |
62100 |
45000 |
1.666 |
|
GW214PPB6 |
2 |
2.6882 68.28 |
4.9213 125 |
1.1024 28 |
2.6874 68.26 |
0.3543 9.00 |
62100 |
44800 |
1.362 |
|
GW309PPB2 |
2 |
1.7717 45 |
3.9370 100 |
1.0630 27 |
1.8740 47.6 |
0.3386 8.6 |
48600 |
28900 |
0.980 |
