Ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.
Ball bearing track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.

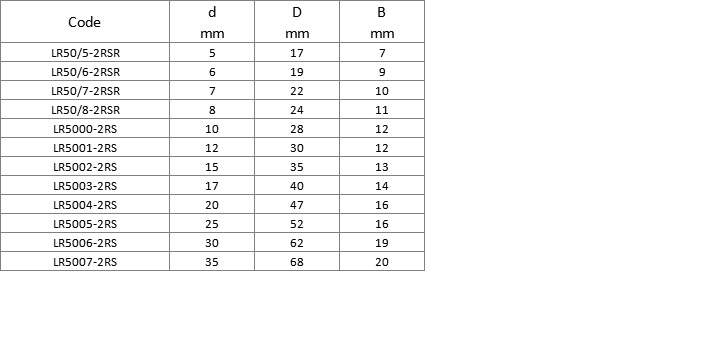

Track rollers LR50, double row, sealed on both sides

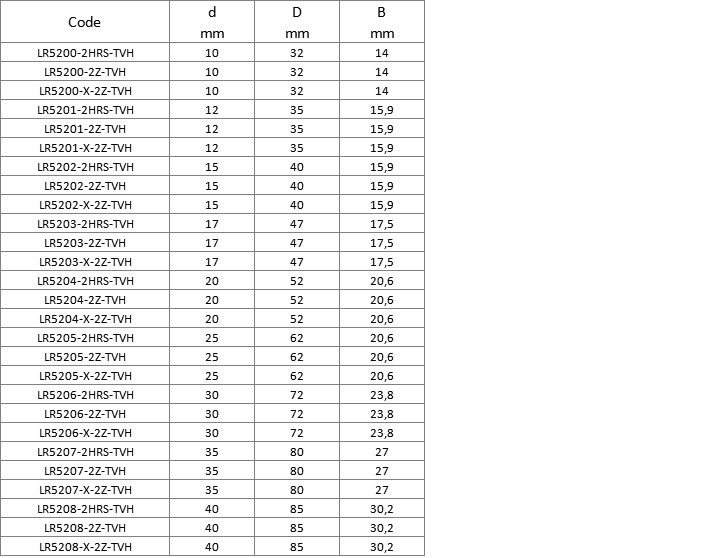

Track rollers LR52, double row, sealed on both sides

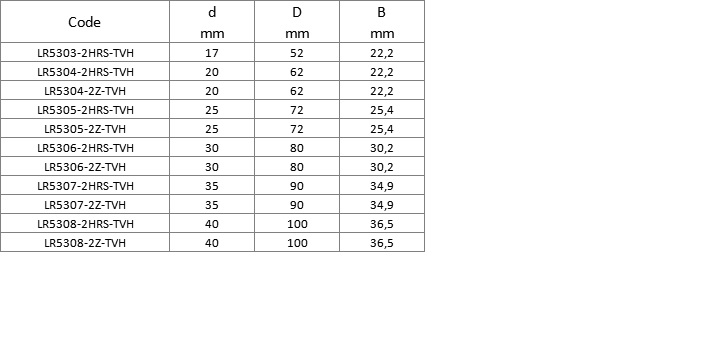

Track rollers LR53, double row, sealed on both sides

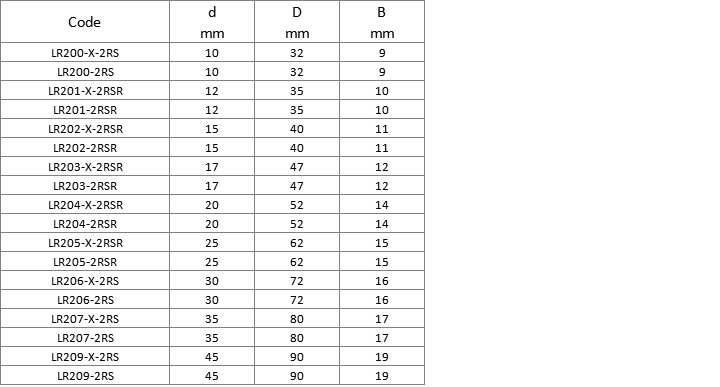

Track rollers LR2, sealed on both sides

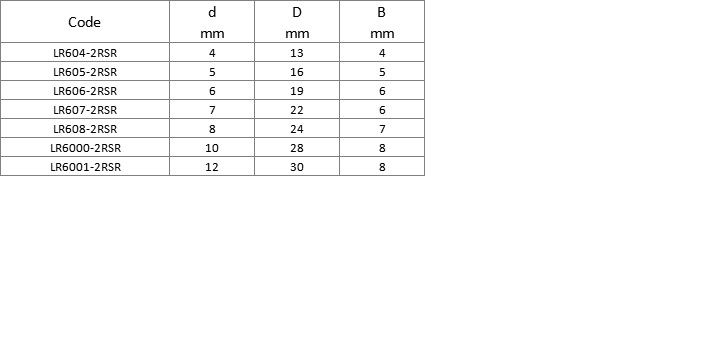

Track rollers LR6, sealed on both sides
